B16G101-3：中英文双语版16G101-3
- 图集编号
- B16G101-3
- 图集名称
- 中英文双语版16G101-3
- 定价
- 267.00 元
- 开本
- 16 开
- 主编单位
- 中国建筑标准设计研究院有限公司
内容简介
16G101-3 Drawing Rules and Standard Detailing Drawings of Ichnographic Representing Method for Construction Drawings of R.C. Structures (Spread footings, strip foundations, raft foundations and pile foundations) is the revised version of 11G101-3 Drawing Rules and Standard Detailing Drawings of Ichnographic Representing Method for Construction Drawings of R.C. Structures (Spread footings, strip foundations, raft foundations and pile foundations). According to the updated versions of codes GB 18306-2015 Seismic ground motion parameters zonation map of China, GB 50011-2010 Code for seismic design of buildings and its partial revision in 2016 and GB 50010-2010 Code for design of concrete structures (2015 version) et al., considering feedbacks from engineering practice and need of practical projects in recent years, contents in the drawing collection have been systematically revised, and details of cast-in-place concrete piles are included in this version.
This drawing collection is applicable to the construction drawing design of all kinds of cast-in-situ concrete spread footings, strip foundations, raft foundations (ribbed and slab) and pile foundations.
There are two parts in this drawing collection: drawing rules of IRM and standard detailing drawings of commonly used spread footings, strip foundations, raft foundations (ribbed and slab) and pile foundations made of cast-in-situ concrete.
目录
| Contents | 1 |
|---|---|

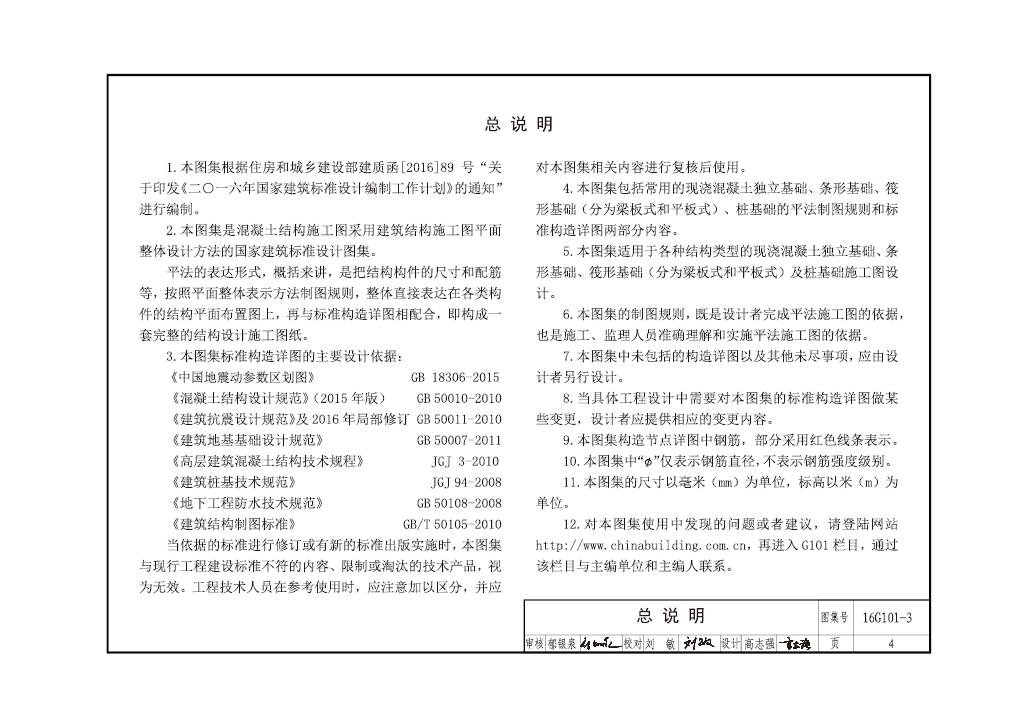

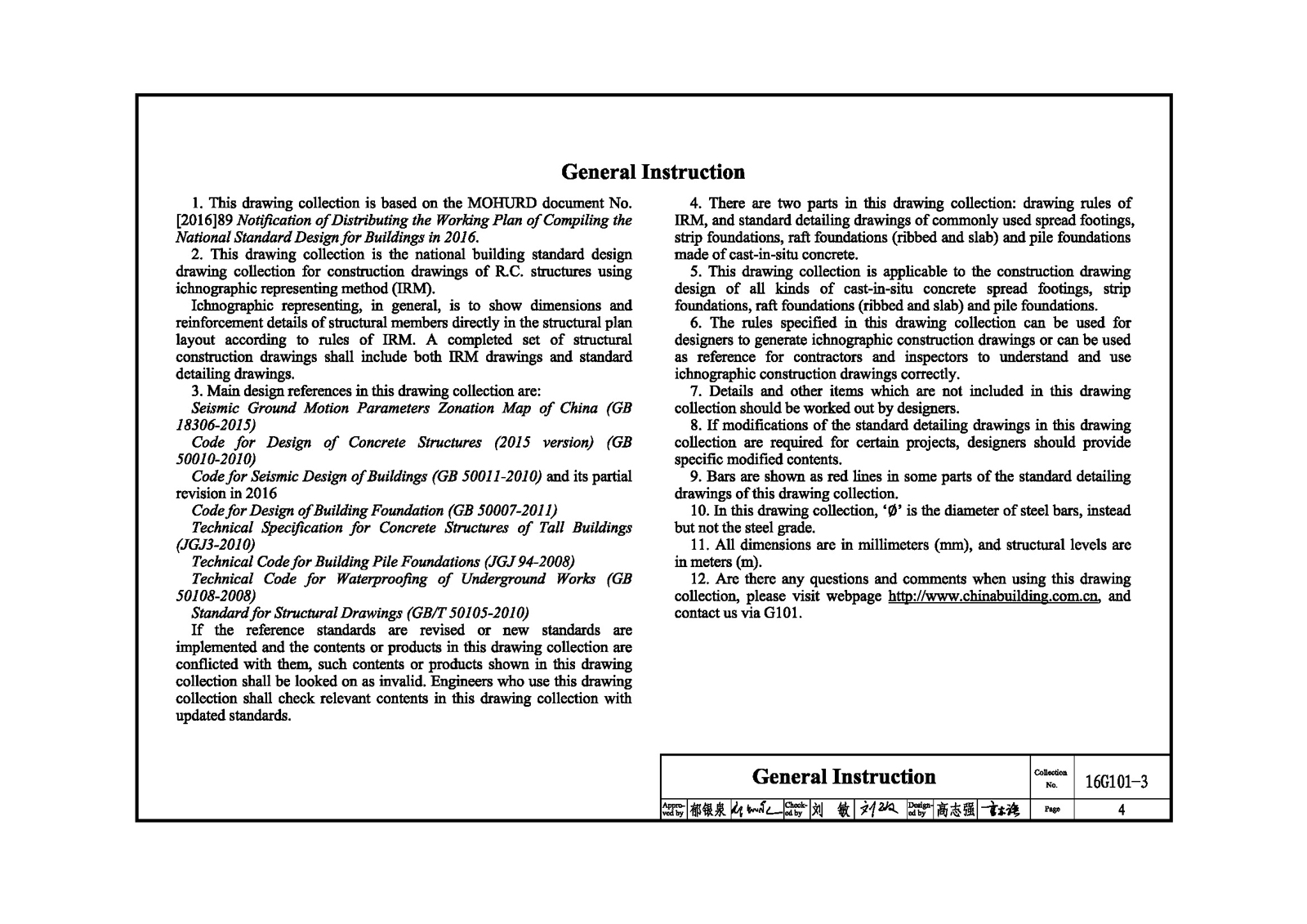

| General Instruction | 4 |
| Part One Drawing Rules of Ichnographic Representing Method | |
| 1 General Provisions | 5 |
| 2 Rules of Ichnographic Construction Drawings of Spread Footings | 7 |
| 2.1 Representing method of ichnographic construction drawings of spread footings | 7 |
| 2.2 Numbering of spread footings | 7 |
| 2.3 Ichnographic annotation method of spread footings | 7 |
| Example of construction drawings of spread footings using IRM | 18 |
| 2.4 Sectional annotation method of spread footings | 19 |
| 2.5 Others | 20 |
| 3 Rules of Ichnographic Construction Drawings of Strip Foundations | 21 |
| 3.1 Representing method of ichnographic construction drawings of strip foundations | 21 |
| 3.2 Numbering of strip foundations | 21 |
| 3.3 Ichnographic annotation method of foundation beams | 21 |
| 3.4 Rules of the length of discontinuous longitudinal bars at the bottom of foundation beams | 24 |
| 3.5 Ichnographic annotation method of strip foundation slabs | 24 |
| Example of construction drawings of strip foundations using IRM | 27 |
| 3.6 Sectional annotation method of strip foundations | 28 |
| 3.7 Others | 29 |
| 4 Rules of Ichnographic Construction Drawings of Ribbed Raft Foundations | 30 |
| 4.1 Representing method of ichnographic construction drawings of ribbed raft foundations | 30 |
| 4.2 Type and numbering of members of ribbed raft foundations | 30 |
| 4.3 Ichnographic annotation method of primary & secondary foundation beams | 30 |
| 4.4 Rules of the length of discontinuous longitudinal bars at the bottom of foundation beams | 33 |
| 4.5 Ichnographic annotation method of slabs of ribbed raft foundations | 33 |
| 4.6 Others | 35 |
| Annotation of primary foundation beams (JL) and secondary foundation beams (JCL) | 36 |
| Annotation of the slab (LPB) of ribbed raft foundations | 37 |
| 5 Rules of Ichnographic Construction Drawings of Slab Foundations | 38 |
| 5.1 Representing method of ichnographic construction drawings of slab foundations | 38 |
| 5.2 Type and numbering of members in slab foundations | 38 |
| 5.3 Ichnographic annotation method of slab strips under columns and slab strips at midspan | 38 |
| 5.4 Ichnographic annotation method of the slab (BPB) of slab foundations | 39 |
| 5.5 Others | 40 |
| Annotation of slab strips under columns (ZXB) and slab strips at midspan (KZB) | 42 |
| Annotation of the slab (BPB) of slab foundations | 43 |

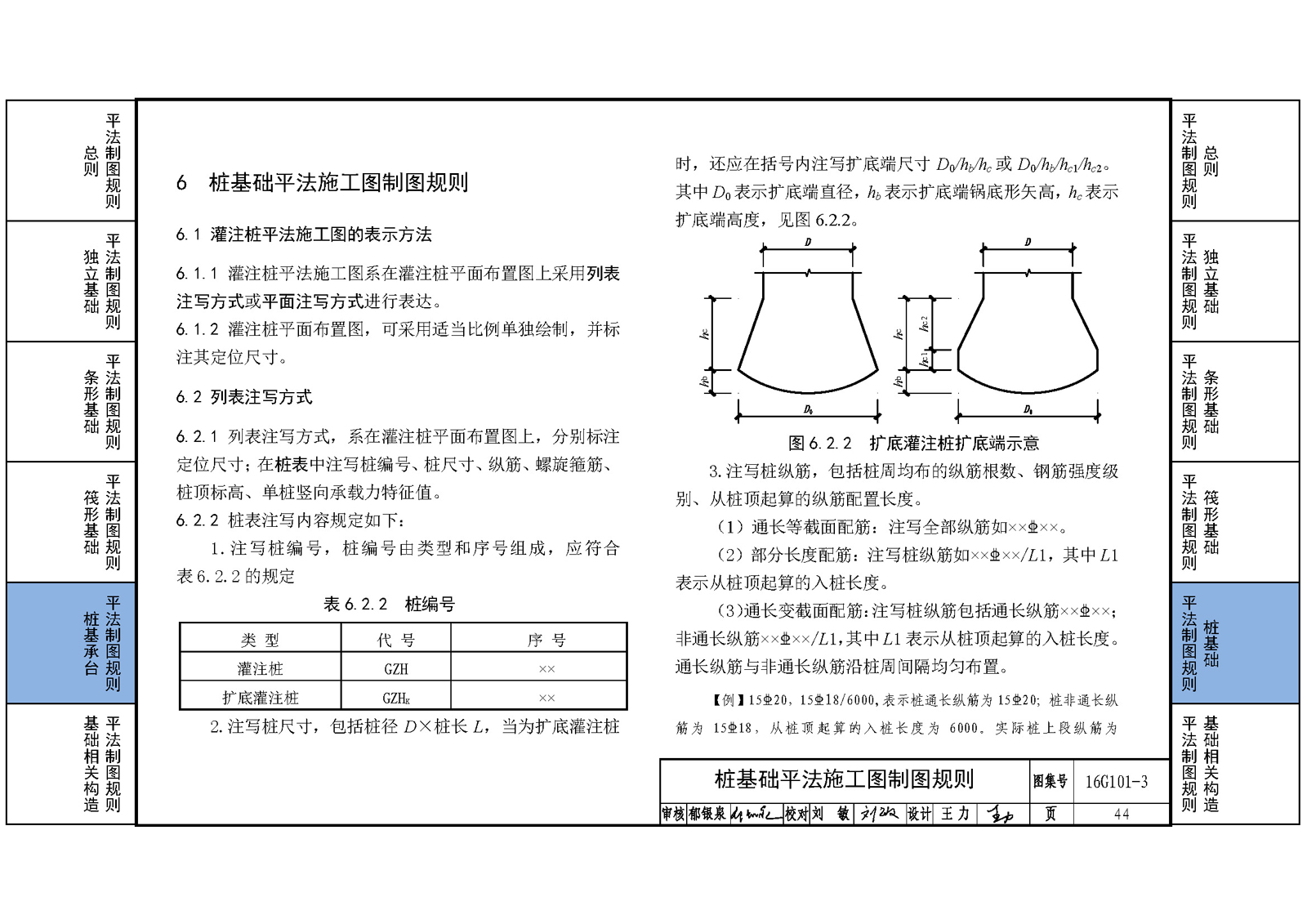

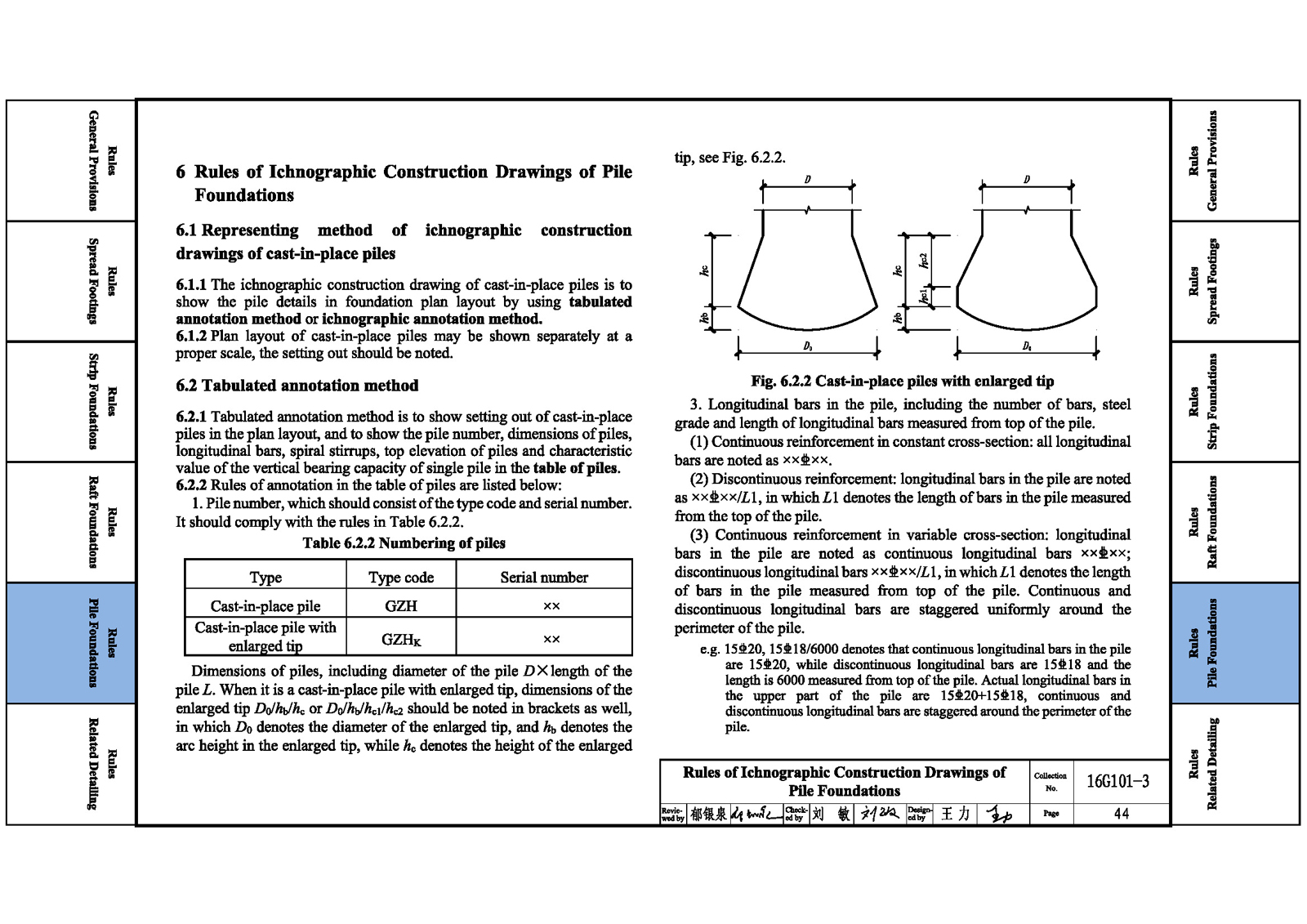

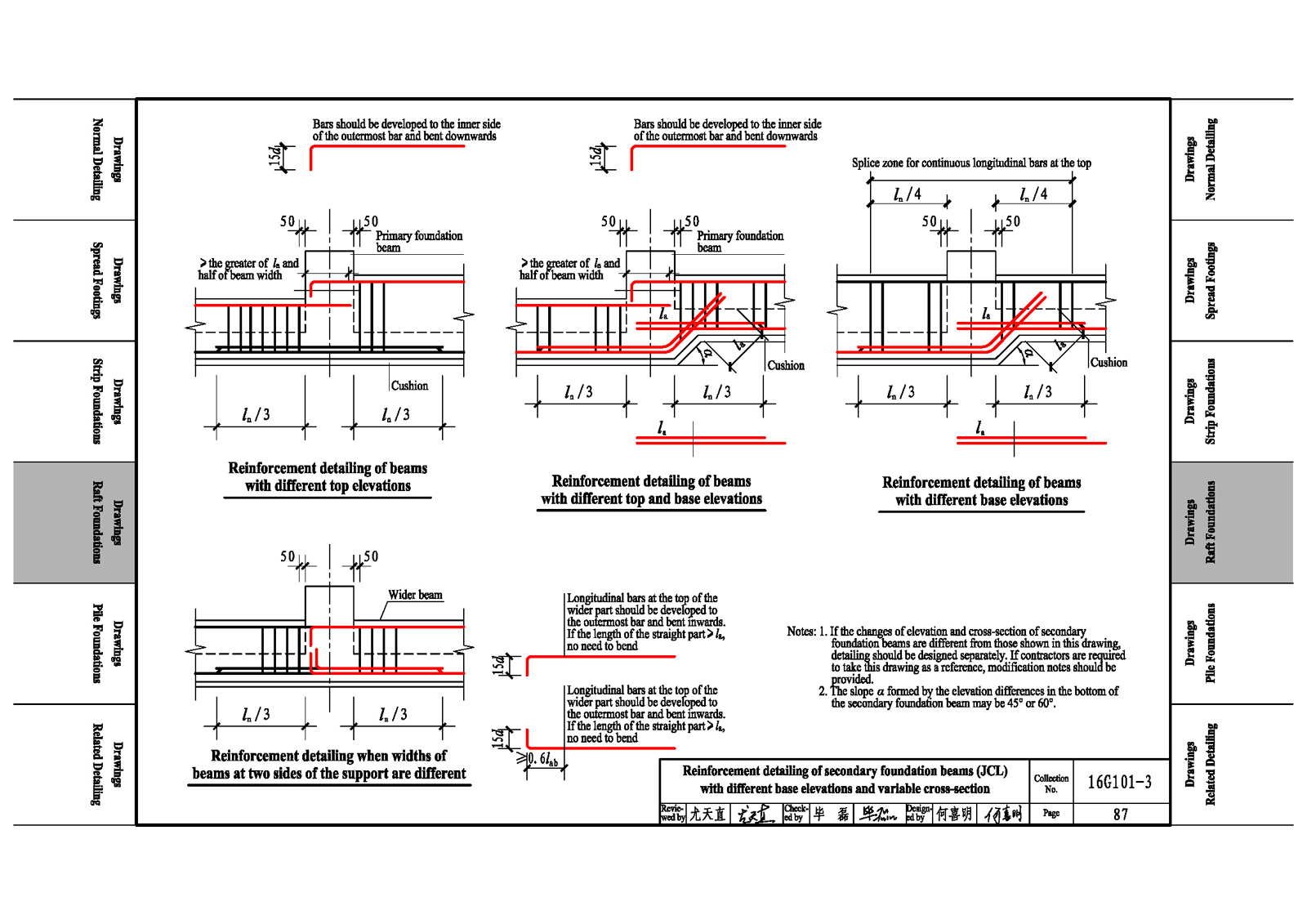

| 6 Rules of Ichnographic Construction Drawings of Pile Foundations | 44 |
| 6.1 Representing method of ichnographic construction drawings of cast-in-place piles | 44 |
| 6.2 Tabulated annotation method | 44 |
| 6.3 Ichnographic annotation method | 45 |
| 6.4 Representing method of ichnographic construction drawings of pile caps | 46 |
| 6.5 Numbering of pile caps | 46 |
| 6.6 Ichnographic annotation method of independent pile caps | 46 |
| 6.7 Ichnographic annotation method of pile cap beams | 49 |
| 6.8 Sectional annotation method of pile caps | 51 |
| 6.9 Others | 51 |
| 7 Drawing Rules of Detailing Related to Foundations | 52 |
| 7.1 Type and representing method of related detailing | 52 |
| 7.2 Drawing rules of ichnographic construction drawings of related detailing | 52 |
| 7.3 Others | 56 |
| Part Two Standard Detailing Drawings | |
| Environment classification of concrete structures Minimum concrete cover | 57 |
| Basic anchorage length lab, basic anchorage length labE of tension bars in seismic design and the inside diameter of hook D | 58 |
| Anchorage length la of tension bars Anchorage length laE of tension bars in seismic design | 59 |
| Hooks and mechanical anchorage types of longitudinal bars Stirrup detailing in the lap zone of longitudinal main bars Splice of longitudinal bars | 60 |
| Lap length ll of longitudinal tension bars | 61 |
| Lap length llE of longitudinal tension bars in seismic design | 62 |
| Detailing of hooks of closed stirrups and tie bars Overlapping stirrups in the foundation beam Lapping detailing of non-contact longitudinal bars | 63 |
| Detailing of vertical distribution bars in walls anchored in foundations | 64 |
| Detailing of developing longitudinal bars in boundary elements to foundations | 65 |
| Detailing of developing longitudinal bars in columns to foundations | 66 |
| Reinforcement detailing of spread footing slabs (DJJ,DJP,BJJ and BJP) | 67 |
| Top and bottom reinforcement detailing of double-column normal spread footings | 68 |
| Reinforcement detailing of double-column normal spread footings with foundation beams | 69 |
| Detailing of reducing length of bars by 10% in spread footings | 70 |
| Detailing of single-socket and double-socket spread footings | 71 |
| Reinforcement detailing of high-socket spread footings | 72 |
| Reinforcement detailing of double-high-socket spread footings | 73 |
| Reinforcement detailing of single-column spread footings with short columns | 74 |
| Reinforcement detailing of double-column spread footings with short columns | 75 |
| Reinforcement detailing of strip foundation slabs (Ⅰ) | 76 |
| Reinforcement detailing of strip foundation slabs (Ⅱ) | 77 |
| Detailing of strip foundation with different slab base elevations Detailing of reducing length of bars by 10% in the foundation slab of strip foundations | 78 |
| Detailing of longitudinal bars and stirrups in foundation beams JL Detailing of additional stirrups Detailing of additional hangers | 79 |
| Detailing of foundation beams (JL) with two arrangements of stirrups Reinforcement detailing of foundation beams (JL) with vertical haunches | 80 |
